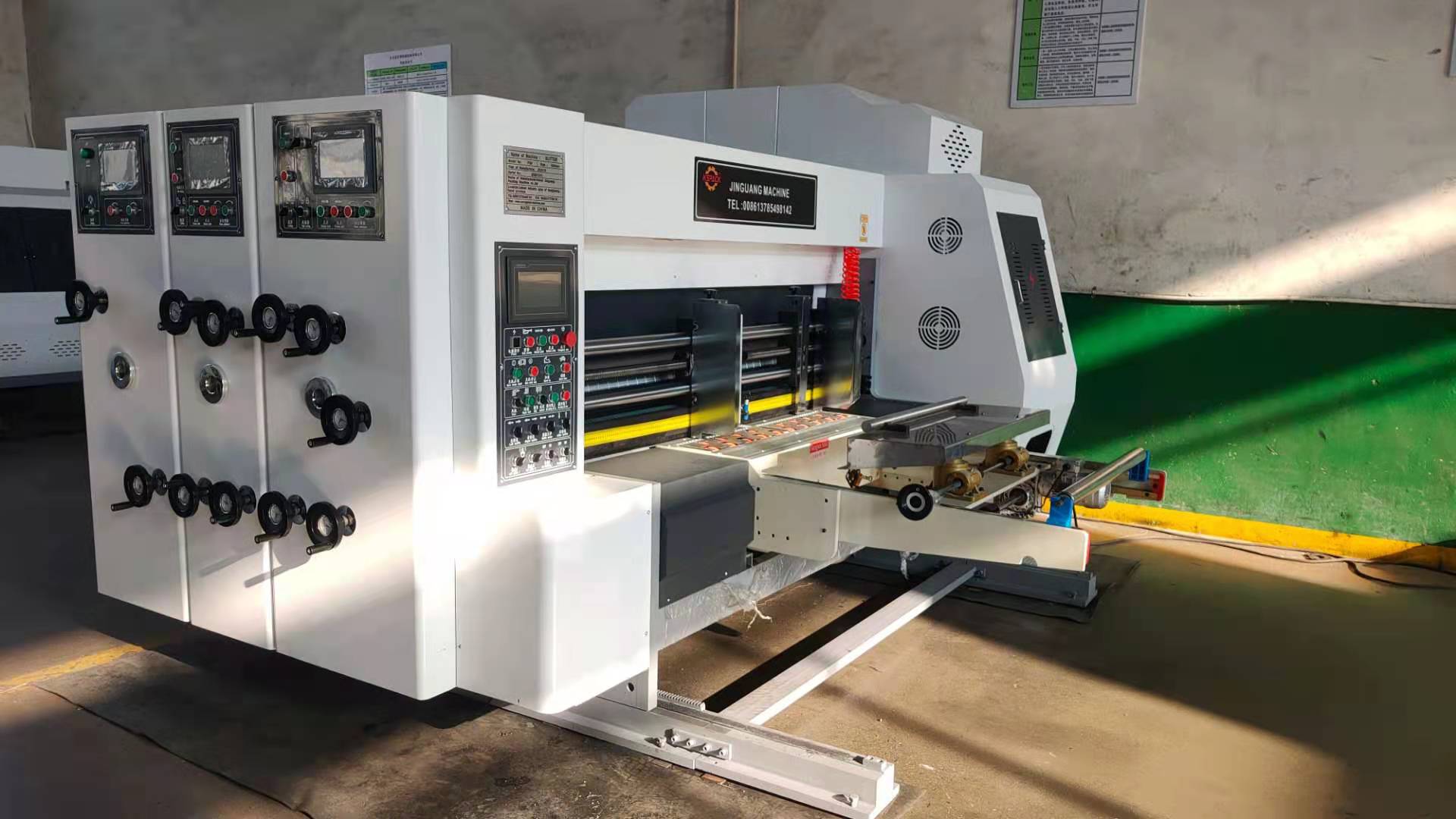

1.Lead edge feeding part for pizza box making machine
(1), suction auxiliary paper feeding, - according to different bending conditions of the paperboard, the air volume can be adjusted to ensure smooth paper feeding.
(2), the paper is lifted and the paper is driven by the cylinder, which is quick and labor-saving.
(3) Adopt the leading edge roller feeding system.
(4), the side baffle and the rear baffle position are electrically adjusted; the front baffle gap is manually adjusted.
(5) Separate sheet feeding device (Continuous or sheet feeding can be selected as needed).
(6)paper feed counter, set and display the production quantity.
2.Printer part for pizza box making machine
(1), the outer diameter is φ292mm (including the outer diameter of the plate is φ300mm).
(2), the surface of the steel pipe is ground and hard chrome plated.
(3), do balance correction, and run smoothly.
(4) Loading and unloading the printing plate, the electric control of the foot switch is reversed.
Die cutter part for pizza box making machine
1. The plate roll and pad roller are made of high quality steel, and the surface is polished and plated with hard chrome. Static and dynamic balance correction, good running stability.
2. Pneumatically controlled die gap and automatic detachment die cutter device to protect the rubber pad and prolong the service life of the rubber pad.
3. The rubber cam is equipped with a mechanical cam type lateral 58mm swimming device to extend the service life of the rubber pad.
4. Phase adjustment device (inner planetary gear structure, large torque, small transmission gap, same When there are 8-9 tooth teeth, the load of each gear is extremely light, so the mechanical wear of the gear is extremely small, and the transmission precision is maintained for a long time and the service life is prolonged. ) Specialized products.
Auto stacker unit for pizza box making machine
1.the paper taking arm is manual operation. The paper stacking height can be chosen freely.
2.Adjustment is available for each belt.
3.The paper feeding platform transmitted up and down by chain.
4.the inclination of paper taking platform is changing as the height of the paper. Brake is installed to fix the platform’s position.
5.when the paper stacking height reach the set point. the paper taking platform will hold the paperboard pneumatically.
